Gram K 1500 CSH - Roll-in Refrigerator

K 1500 CSH - Roll-in Refrigerator

Roll-in 1500 is a new series of roll-in refrigerators and freezers that belongs to the latest generation of environmentally friendly Gram products. This means that the cabinets are completely free from the greenhouse gas HFC.

The series has grown in size and with an internal clear height of 1900 mm the cabinets are ideal for all trolleys and oven frames currently used in commercial kitchens.

Roll-in cabinets are designed for temporary refrigerated storage within a production line, for example between blast chillers and refrigerated coldrooms. By utilising roll-in cabinets the refrigeration process is unbroken, ensuring time spent on manual handling and re-loading is kept to a minimum.

Roll-in cabinets are available as refrigerator or freezer, the former with two optional temperature ranges to choose from.

The refrigerators can be supplied with or without a floor and with isolated or glass doors. The freezers are available with isolated door and floor.

The cabinets are available with either an integrated refrigeration system or supplied for connection to a remote refrigeration system.

Equipped with: Right hand hinged reversible door with positive handle and lock
Temperature range: +2/+12°C
Volume, gross: 1422 ltr./50.4 cu.ft.
Volume, net: 1273 ltr./45.1 cu.ft.
Exterior/Interior: Stainless/Stainless
External, W x D x H: 880 x 1088 x 2330 mm
Internal, W x D x H: 720 x 895 x 1900 mm
Weight, packed: 185 kg
Insulation: 60 mm (cyclopentane)
Refrigerant: R 134 a
Ref. capacity at -10°C: 703 Watt
Connection: 230 V, 50 Hz
Connection load: 540 Watt
Options Hydrocarbon natural refrigerant available, please contact us for more details

For more information on this or any other product, please call our sales team on 01603 439459

Gram F 1500 CSH - Roll-in Freezer

Roll-in 1500 is a new series of roll-in refrigerators and freezers that belongs to the latest generation of environmentally friendly Gram products. This means that the cabinets are completely free from the greenhouse gas HFC.

The series has grown in size and with an internal clear height of 1900 mm the cabinets are ideal for all trolleys and oven frames currently used in commercial kitchens.

Roll-in cabinets are designed for temporary refrigerated storage within a production line, for example between blast chillers and refrigerated coldrooms. By utilising roll-in cabinets the refrigeration process is unbroken, ensuring time spent on manual handling and re-loading is kept to a minimum.

Roll-in cabinets are available as refrigerator or freezer, the former with two optional temperature ranges to choose from.

The refrigerators can be supplied with or without a floor and with isolated or glass doors. The freezers are available with isolated door and floor.

The cabinets are available with either an integrated refrigeration system or supplied for connection to a remote refrigeration system.

Equipped with: Right hand hinged reversible door with positive handle and lock, heated floor in stainless steel
Temperature range: -25/-5°C
Volume, gross: 1422 ltr./50.4 cu.ft.
Volume, net: 1273 ltr./45.1 cu.ft.
Exterior/Interior: Stainless/Stainless
External, W x D x H: 880 x 1088 x 2354 mm
Internal, W x D x H: 720 x 895 x 1900 mm
Weight, packed: 185 kg
Insulation: 60 mm (cyclopentane)
Refrigerant: R 404 A
Ref. capacity at - 25°C: 830 Watt
Connection: 230 V, 50 Hz
Connection load: 818 Watt
Options Hydrocarbon natural refrigerant available, please contact us for more details

For more information on this or any other product, please call our sales team on 01603 439459

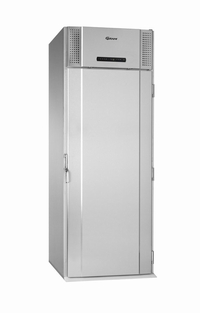

Gram K 1500 D CSH - Roll-through Refrigerator

Roll-through 1500 is a new series of roll-through refrigerators that belong to the latest generation of environmentally friendly Gram products. This means that the cabinets are completely free from the greenhouse gas HFC.

With an internal clear height of 1900 mm the cabinets are ideal for all trolleys and oven frames currently used in commercial kitchens.

Roll-through cabinets are designed for temporary refrigerated storage within a production line, for example between blast chillers and refrigerated
coldrooms.

By utilising roll-in cabinets the refrigeration process is unbroken, ensuring time spent on manual
handling and re-loading is kept to a minimum.

Roll-through refrigerators are available with the following door combinations:

• Two isolated doors
• Glass door on the front and isolated door on the back
• Two glass doors

The cabinets are available with either an integrated refrigeration system or supplied for connection to a remote refrigeration system.

All variants are supplied with a compact stainless floor with integrated drive-in ramp and heating.

Equipped with: Right hand hinged reversible door with positive handle and bottom cold-retaining strip. With floor in stainless steel with drive-in ramp
Temperature range: +2/+12°C
Volume, gross: 1523 ltr./54.0 cu.ft.
Volume, net: 1370 ltr./48.6 cu.ft.
Exterior/Interior: Stainless/Stainless
External, W x D x H: 880 x 1108 x 2354 mm
Internal, W x D x H: 720 x 965 x 1900 mm
Weight, packed: 185 kg
Insulation: 60 mm (cyclopentane)
Refrigerant: R 134 a
Ref. capacity at -10°C: 703 Watt
Connection: 230 V, 50 Hz
Connection load: 490 Watt
Options Hydrocarbon natural refrigerant available, please contact us for more details

For more information on this or any other product, please call our sales team on 01603 439459

Gram KG 1500 D CSH - Roll-through Refrigerator

Roll-through 1500 is a new series of roll-through refrigerators that belong to the latest generation of environmentally friendly Gram products. This means that the cabinets are completely free from the greenhouse gas HFC.

With an internal clear height of 1900 mm the cabinets are ideal for all trolleys and oven frames currently used in commercial kitchens.

Roll-through cabinets are designed for temporary refrigerated storage within a production line, for example between blast chillers and refrigerated
coldrooms.

By utilising roll-in cabinets the refrigeration process is unbroken, ensuring time spent on manual
handling and re-loading is kept to a minimum.

Roll-through refrigerators are available with the following door combinations:

• Two isolated doors
• Glass door on the front and isolated door on the back
• Two glass doors

The cabinets are available with either an integrated refrigeration system or supplied for connection to a remote refrigeration system.

All variants are supplied with a compact stainless floor with integrated drive-in ramp and heating.

Equipped with: Right hand hinged reversible door with positive handle and bottom cold-retaining strip. With floor in stainless steel with drive-in ramp
Temperature range: +2/+12°C
Volume, gross: 1523 ltr./54.0 cu.ft.
Volume, net: 1370 ltr./48.6 cu.ft.
Exterior/Interior: Stainless/Stainless
External, W x D x H: 880 x 1108 x 2354 mm
Internal, W x D x H: 720 x 965 x 1900 mm
Weight, packed: 195 kg
Insulation: 60 mm (cyclopentane)
Refrigerant: R 134 a
Ref. capacity at -10°C: 703 Watt
Connection: 230 V, 50 Hz
Connection load: 530 Watt
Options Hydrocarbon natural refrigerant available, please contact us for more details

For more information on this or any other product, please call our sales team on 01603 439459

Gram KGG 1500 D CSH - Roll-through Refrigerator

Roll-through 1500 is a new series of roll-through refrigerators that belong to the latest generation of environmentally friendly Gram products. This means that the cabinets are completely free from the greenhouse gas HFC.

With an internal clear height of 1900 mm the cabinets are ideal for all trolleys and oven frames currently used in commercial kitchens.

Roll-through cabinets are designed for temporary refrigerated storage within a production line, for example between blast chillers and refrigerated
coldrooms.

By utilising roll-in cabinets the refrigeration process is unbroken, ensuring time spent on manual
handling and re-loading is kept to a minimum.

Roll-through refrigerators are available with the following door combinations:

• Two isolated doors
• Glass door on the front and isolated door on the back
• Two glass doors

The cabinets are available with either an integrated refrigeration system or supplied for connection to a remote refrigeration system.

All variants are supplied with a compact stainless floor with integrated drive-in ramp and heating.

Equipped with: Right hand hinged reversible door with positive handle and bottom cold-retaining strip. With floor in stainless steel with drive-in ramp
Temperature range: +2/+12°C
Volume, gross: 1523 ltr./54.0 cu.ft.
Volume, net: 1370 ltr./48.6 cu.ft.
Exterior/Interior: Stainless/Stainless
External, W x D x H: 880 x 1108 x 2354 mm
Internal, W x D x H: 720 x 965 x 1900 mm
Weight, packed: 205 kg
Insulation: 60 mm (cyclopentane)
Refrigerant: R134a
Ref. capacity at -10°C: 703 Watt
Connection: 230 V, 50 Hz
Connection load: 570 Watt
Options Hydrocarbon natural refrigerant available, please contact us for more details

For more information on this or any other product, please call our sales team on 01603 439459

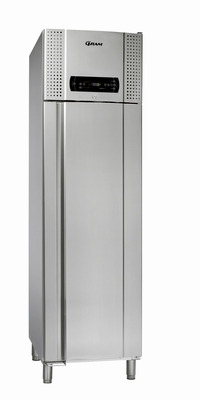

Gram KP 500 CXH 5S - Quick Chiller

The KP 500 quick chiller is designed for use in busy professional kitchens. Its ability to quickly chill large quantities of food adds flexibility into the busiest working kitchen and reduces unnecessary waste whilst preserving natural flavours and vitamins within the food.

Chilling time:
45 kg (max. 50 mm thick) of food from +70°C to +8°C in 4 hours.
13 kg (max. 25 mm thick) of food from +70°C to +3°C in 90 minutes.

Controlled rapid thawing:
22 kg (max. 50 mm thick) of food from -18°C to +7°C in 12 hours.

The thawing cycle ensures a controlled thawing process. The temperature in the cabinet never exceeds +8°C.

The sophisticated electronic controls are easy to operate and allow the KP 500 to operate as both a ‘quick chiller’ and a normal storage cabinet - a process it automatically reverts to at the end of every chill cycle.

The flexible controls also offer the choice of a time or temperaturecontrolled chilling process with either soft or hard chill options for gentle or fast chilling of food.

Altogether, the KP 500 has six functions; refrigeration, freezing, quick
chill, quick freeze, thawing and dry cooling.

Equipped with: Right hand hinged reversible door with lock, automatic door closing, pedal door opener, 5 stainless shelves, rapid thaw
Temperature range: -30/+10°C
Volume, gross: 500 ltr./17.7 cu.ft.
Volume, net: 448 ltr./15.8 cu.ft.
Exterior/Interior: Stainless/Stainless
W x D x H: 600 x 806 x 2175 mm
Weight, packed: 134 kg
Insulation: 60 mm (cyclopentane)
Refrigerant: R 404 A
Ref. capacity at -10°C: 1876 Watt
Connection: 230 V, 50 Hz
Connection load: 1120 Watt
Sound level: 49,2 dB(A)

For more information on this or any other product, please call our sales team on 01603 439459

KP 660 CXH 5S - Quick Chiller

The KP 660 quick chiller is designed for use in busy professional kitchens. It's ability to quickly chill large quantities of food adds flexibility into the busiest working kitchen and reduces unescessary waste whilst preserving natural flavours and vitamins within the food.

Equipped with: Right hand hinged reversible door with lock, automatic door closing, pedal door opener, 5 stainless shelve, rapid thaw
Temperature range: -30/+10°C
Volume, gross: 660 ltr./23.3 cu.ft.
Volume, net: 565 ltr./19.9 cu.ft.
Exterior/Interior: Stainless/Stainless
W x D x H: 815 x 756 x 2160 mm
Weight, packed: 170 kg
Insulation: 60 mm
Refrigerant: R 404 A
Ref. capacity at -10°C: 2440 Watt
Connection: 230 V, 50 Hz
Connection load: 1529 Watt
Sound level: 45,3 dB(A)

For more information on this or any other product, please call our sales team on 01603 439459

Gram KPS 20 CH - Blast Chiller

Blast chilling of food makes it possible to separate the preperation and cooking acitivites from the serving. This enables the kitchen to utilise preperation and cooking equipment in a more even manner throughout the day, resulting in a reduction in stress at peak periods.

A blast chiller is an integral part of any cook-chill operation, as the time taken to cool products is adecisive factor in preserving the apperance and taste of the food, preserving the vitamins and nourishment value and preventing the growth of bacteria. Food temperature and chilling time must be able to be controlled and monitored simply in order to control these decisive factors, in order to comply with the current requirements to chill food items (max. 50 mm thick) from +70°C to +3°C in 90 minutes in a cook-chill operation.

Equipped with: Right hand hinged door, removable support for 5 x 1/1 GN trays
Temperature range: 0/+10°C
Exterior/Interior: Stainless/Stainless
W x D x H: 745 x 700 x 850 mm
Weight, packed: 110 kg
Insulation: 60 mm
Refrigerant: R 404 A
Ref. capacity at -10°C: 692 Watt
Connection: 230 V, 50 Hz
Connection load: 900 Watt
Chilling capacity: 18 kg from +70°C to +3°C in 90 min.
Sound level: 58,2 dB(A)

For more information on this or any other product, please call our sales team on 01603 439459

Gram KPS 20 SH - Blast Chiller/Freezer

Blast chilling of food makes it possible to separate the preperation and cooking acitivites from the serving. This enables the kitchen to utilise preperation and cooking equipment in a more even manner throughout the day, resulting in a reduction in stress at peak periods.

A blast chiller is an integral part of any cook-chill operation, as the time taken to cool products is adecisive factor in preserving the apperance and taste of the food, preserving the vitamins and nourishment value and preventing the growth of bacteria. Food temperature and chilling time must be able to be controlled and monitored simply in order to control these decisive factors, in order to comply with the current requirements to chill food items (max. 50 mm thick) from +70°C to +3°C in 90 minutes in a cook-chill operation.

Equipped with: Right hand hinged door, removable support for 5 x 1/1 GN trays
Temperature range: -25/+10°C
Exterior/Interior: Stainless/Stainless
W x D x H: 745 x 700 x 850 mm
Weight, packed: 115 kg
Insulation: 60 mm
Refrigerant: R 404 A
Ref. capacity at -25°C: 813 Watt
Connection: 230 V, 50 Hz
Connection load: 1350 Watt
Chilling capacity: 20 kg from +70°C to +3°C in 90 min.
Freezing capacity: 12 kg from +70°C to -18°C in 4 hours
Sound level: 58,8 dB(A)

For more information on this or any other product, please call our sales team on 01603 439459

Gram KPS 20 SH T - Blast Chiller/Freezer

Right hand hinged door, removable support for 5 x 1/1 GN trays or bakery trays 60 x 40 cm. Multipoint probe with 3 measuring points

Equipped with: Table top with integrated control panel, right hand hinged door, removable support for 5 x 1/1 GN trays
Temperature range: -25/+10°C
Exterior/Interior: Stainless/Stainless
W x D x H: 745 x 700 x 1000 mm
Weight, packed: 117 kg
Insulation: 60 mm
Refrigerant: R 404 A
Ref. capacity at -25°C: 813 Watt
Connection: 230 V, 50 Hz
Connection load: 1350 Watt
Chilling capacity: 20 kg from +70°C to +3°C in 90 minutes
Freezing capacity: 12 kg from +70°C to -18°C in 4 hours
Sound level: 58,8 dB(A)

For more information on this or any other product, please call our sales team on 01603 439459

Gram KPS 40 CH - Blast Chiller

Blast chilling of food makes it possible to separate the preperation and cooking acitivites from the serving. This enables the kitchen to utilise preperation and cooking equipment in a more even manner throughout the day, resulting in a reduction in stress at peak periods.

A blast chiller is an integral part of any cook-chill operation, as the time taken to cool products is adecisive factor in preserving the apperance and taste of the food, preserving the vitamins and nourishment value and preventing the growth of bacteria. Food temperature and chilling time must be able to be controlled and monitored simply in order to control these decisive factors, in order to comply with the current requirements to chill food items (max. 50 mm thick) from +70°C to +3°C in 90 minutes in a cook-chill operation.

Equipped with: Right hand hinged reversible door, automatic door closing, removable support for 10 x 1/1 GN trays or bakery trays 60 x 40 cm. Multipoint probe with 3 measuring points
Temperature range: 0/+10°C
Exterior/Interior: Stainless/Stainless
W x D x H: 800 x 830 x 1750 mm
Weight, packed: 180 kg
Insulation: 75 mm
Refrigerant: R 404 A
Ref. capacity at -10°C: 2245 Watt
Connection: 3x400 V, 50 Hz
Connection load: 2000 Watt
Chilling capacity: 36 kg from +70°C to +3°C in 90 min.
Please observe: It is necessary to connect this unit to an external drain
Please note: This model is available as a single phase unit. 230 V, 50 Hz - 30 amp fuse
Sound level: 63,8 dB(A)

For more information on this or any other product, please call our sales team on 01603 439459

Gram KPS 40 SH - Blast Chiller/Freezer

Blast chilling of food makes it possible to separate the preperation and cooking acitivites from the serving. This enables the kitchen to utilise preperation and cooking equipment in a more even manner throughout the day, resulting in a reduction in stress at peak periods.

A blast chiller is an integral part of any cook-chill operation, as the time taken to cool products is adecisive factor in preserving the apperance and taste of the food, preserving the vitamins and nourishment value and preventing the growth of bacteria. Food temperature and chilling time must be able to be controlled and monitored simply in order to control these decisive factors, in order to comply with the current requirements to chill food items (max. 50 mm thick) from +70°C to +3°C in 90 minutes in a cook-chill operation.

Equipped with: Right hand hinged reversible door, automatic door closing, removable support for 10 x 1/1 GN trays
Temperature range: -25/+10°C
Exterior/Interior: Stainless/Stainless
W x D x H: 800 x 830 x 1750 mm
Weight, packed: 185 kg
Insulation: 75 mm
Refrigerant: R 404 A
Ref. capacity at -25°C: 2345 Watt
Connection: 3x400 V, 50 Hz
Connection load: 3500 Watt
Chilling capacity: 42 kg from +70°C to +3°C in 90 min.
Freezing capacity: 25 kg from +70°C to -18°C in 4 hours
Please observe: It is necessary to connect this unit to an external drain
Please note: This model is available as a single phase unit. 230 V, 50 Hz - 30 amp fuse

For more information on this or any other product, please call our sales team on 01603 439459

Gram KPS 40 SF - Blast Chiller/Freezer - Remote

Blast chilling of food makes it possible to separate the preperation and cooking acitivites from the serving. This enables the kitchen to utilise preperation and cooking equipment in a more even manner throughout the day, resulting in a reduction in stress at peak periods.

A blast chiller is an integral part of any cook-chill operation, as the time taken to cool products is adecisive factor in preserving the apperance and taste of the food, preserving the vitamins and nourishment value and preventing the growth of bacteria. Food temperature and chilling time must be able to be controlled and monitored simply in order to control these decisive factors, in order to comply with the current requirements to chill food items (max. 50 mm thick) from +70°C to +3°C in 90 minutes in a cook-chill operation.

Equipped with: Right hand hinged reversible door, automatic door closing, removable support for 10 x 1/1 GN trays or bakery trays 60 x 40 cm. Multipoint probe with 3 measuring points
Temperature range: -25/+10°C
Exterior/Interior: Stainless/Stainless
W x D x H: 800 x 830 x 1750 mm
Weight, packed: 170 kg
Insulation: 75 mm
Refrigerant: R 404 A
Ref. capacity at -25°C: 2400 Watt
Connection: 230 V, 50 Hz
Connection load: 274 Watt
Chilling capacity: 42 kg from +70°C to +3°C in 90 minutes
Freezing capacity: 25 kg from +70°C to -18°C in 4 hours
Please observe: It is necessary to connect this unit to an external drain
Warranty period: 1 Year

For more information on this or any other product, please call our sales team on 01603 439459

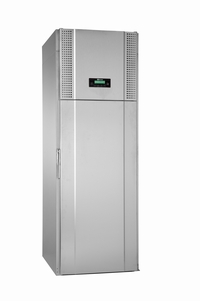

Gram KPS 60 CH - Blast Chiller/Freezer

The KPS high capacity blast chiller/freezer is designed to chill 60 kg of cooked food from +70°C to +3°C in 90 minutes.

The KPS 60 can be operated as a stand alone blast chiller/freezer or incorporated within a cook chill system. A cook chill system once installed in akitchen can introduce savings through portion control and more efficient use of ingredients, whilst maintaining a uniform quality standard.

The KPS is available with an integrated compressor or as a remote version. It will provide flexible blast chilling/freezing solutions, whilst reducing stress at peak periods and anti-social working hours due to it's easy to operate control and monitoring systems.

The exact temperature and chilling time is easily set and precisely maintained by the unique Gram controller. In addition to time controlled operation, the chill cycle can be controlled by the food probe or air temperature - which can offer protection against surface freezing for delicate products. At the end of every chill cycle the cabinet can automatically switch to storage mode.

Equipped with: Right hand hinged door with positive handle and lock, trolley included
Temperature range: -25/+10°C
Exterior/Interior: Stainless/Stainless
W x D x H: 780 x 995 x 2215 mm
Weight, packed: 205 kg
Insulation: 60 mm
Refrigerant: R 404 A
Ref. capacity at -10°C: 4588 Watt
Connection: 3x400 V, 50 Hz
Connection load: 3011 Watt
Chilling capacity: 60 kg from +70°C to +3°C in 90 minutes
Please observe: It is necessary to connect this unit to an external drain
Sound level: 63,0 dB(A)

For more information on this or any other product, please call our sales team on 01603 439459

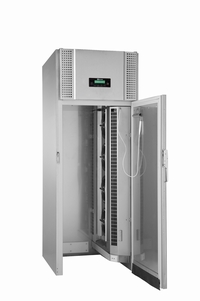

Gram KPS 60 CF - Blast Chiller/Freezer - Remote

The KPS high capacity blast chiller/freezer is designed to chill 60 kg of cooked food from +70°C to +3°C in 90 minutes.

The KPS 60 can be operated as a stand alone blast chiller/freezer or incorporated within a cook chill system. A cook chill system once installed in akitchen can introduce savings through portion control and more efficient use of ingredients, whilst maintaining a uniform quality standard.

The KPS is available with an integrated compressor or as a remote version. It will provide flexible blast chilling/freezing solutions, whilst reducing stress at peak periods and anti-social working hours due to it's easy to operate control and monitoring systems.

The exact temperature and chilling time is easily set and precisely maintained by the unique Gram controller. In addition to time controlled operation, the chill cycle can be controlled by the food probe or air temperature - which can offer protection against surface freezing for delicate products. At the end of every chill cycle the cabinet can automatically switch to storage mode.

Equipped with: Right hand hinged door with positive handle and lock, trolley included
Temperature range: -25/+10°C
Exterior/Interior: Stainless/Stainless
W x D x H: 780 x 995 x 2025 mm
Weight, packed: 180 kg
Insulation: 60 mm
Refrigerant: R 404 A
Ref. capacity at -10°C: 4500 Watt
Connection: 230 V, 50 Hz
Connection load: 301 Watt
Chilling capacity: 60 kg from +70°C to +3°C in 90 minutes
Condensing Unit Not Included
Please observe: It is necessary to connect this unit to an external drain
Warranty period: 1 Year

For more information on this or any other product, please call our sales team on 01603 439459

Gram KPS 90 SF-1 - Blast Chiller/Freezer - Remote

Blastchiller for 1/1 GN oven trolleys. Compatible with Rational type CPC 201 and Hounö type 1.16 and 1.20 ovens. Blast chilling capacity of 90 kg from +70° to +3°C within 90 minutes.

Compatible with: Rational type CPC 201
Equipped with: Right hand hinged door with positive handle and lock
Temperature range: -25/+10°C
Exterior/Interior: Stainless/Stainless
W x D x H: 1100 x 840 x 2055 mm
Weight, packed: 200 kg
Insulation: 60 mm
Refrigerant: R 404 A
Ref. capacity at -25°C: 8000 Watt
Connection: 230 V, 50 Hz
Connection load: 440 Watt
Chilling capacity: 90 kg from +70°C to +3°C in 90 minutes
Condensing unit: Not included

For more information on this or any other product, please call our sales team on 01603 439459
